Description

Fatra Two Layer Felt System

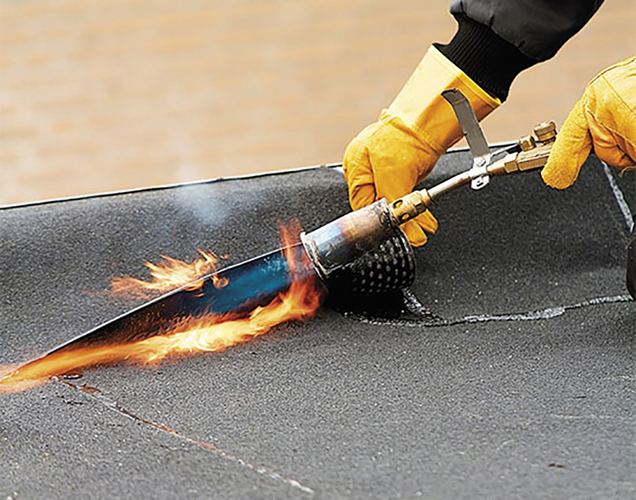

The system comprises an underlayer and a capsheet used in conjunction with a vapour control layer in a warm roof construction. The Fatra Two Layer Felt System guarantees water tightness due to the homogeneous bonding of the felt’s bitumen throughout each layer.

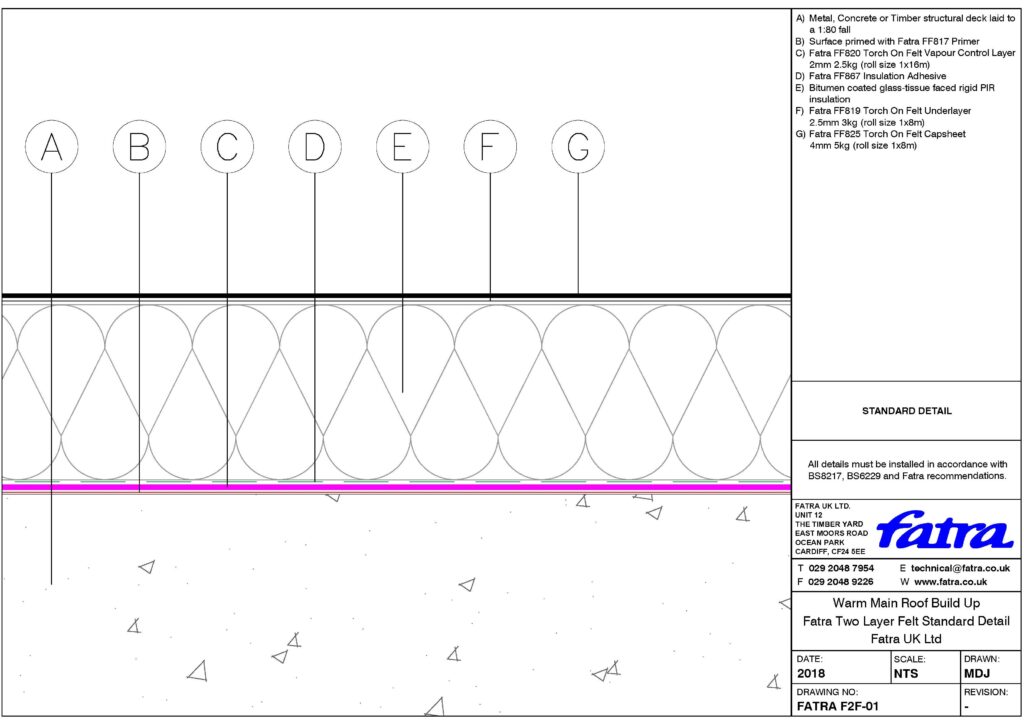

Typical System Build Up

A) Substrate - Metal, Concrete or Timber

B) Primer - Fatra FF817 Primer

C) Vapour Control Layer - Fatra FF820 Torch On Felt VCL

D) Insulation Adhesive - Fatra FF867 Insulation Adhesive

E) Insulation - Bitumen coated glass-tissue faced rigid PIR insulation

F) Underlayer - Fatra FF819 Torch On Felt Underlayer

G) Capsheet - Fatra FF825 Torch On Felt Capsheet

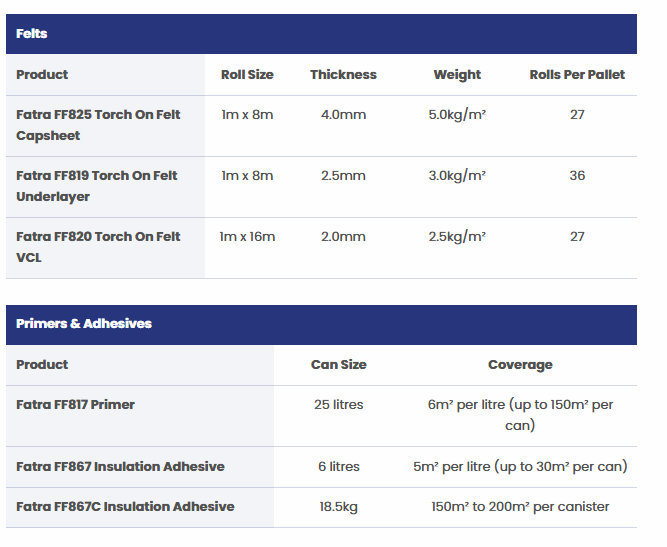

Felts

Product

Roll Size

Thickness

Weight

Rolls Per Pallet

Fatra FF825 Torch On Felt Capsheet

1m x 8m

4.0mm

5.0kg/m²

27

Fatra FF819 Torch On Felt Underlayer

1m x 8m

2.5mm

3.0kg/m²

36

Fatra FF820 Torch On Felt VCL

1m x 16m

2.0mm

2.5kg/m²

27

Primers & Adhesives

Product

Can Size

Coverage

Fatra FF817 Primer

25 litres

6m² per litre (up to 150m² per can)

Fatra FF867 Insulation Adhesive

6 litres

5m² per litre (up to 30m² per can)

Fatra FF867C Insulation Adhesive

18.5kg

150m² to 200m² per canister

Fatra FF825 Torch On Felt Capsheet

Description: The Fatra FF825 is a torch applied capsheet with a charcoal black slate granular finish which provides great protection from membrane aging due to UV rays. The capsheet has a 75mm selvedge which facilitates bonding of the side laps. It consists of a special compound based on distilled bitumen which is modified with elastomers. This high content of polymer modified SBS is strengthened with 250g/m² linear-reinforced spun bond polyester. The reinforced modified bitumen blend assures good flexibility at low temperatures, excellent adhesion and great dimensional stability for use as a capsheet.

Product Make Up: Thermofusible film, SBS, 250g/m² polyester reinforcement, SBS, Slate Mineral Finish.



Fatra FF819 Torch On Felt Underlayer

Description: The Fatra FF819 is a torch applied underlayer finished with a thermofusible film on both sides. It consists of a special compound based on distilled bitumen which is modified with elastomers. This high content of polymer modified SBS is strengthened with 190g/m² linear-reinforced spun bond polyester. The reinforced modified bitumen blend assures good flexibility at low temperatures, excellent adhesion and great dimensional stability for use as an underlayer.

Product Make Up: Thermofusible film, SBS, 190g/m² polyester reinforcement, SBS, thermofusible film.



Fatra FF820 Torch On Felt Vapour Control Layer

Description: The Fatra FF820 is a torch applied VCL finished with a thermofusible film on the underside and a sanded finish to the upper-side. It consists of a special compound based on distilled bitumen which is modified with elastomers. This high content of polymer modified SBS is strengthened with 80g/m² linear-reinforced spun bond polyester. The reinforced modified bitumen blend assures good flexibility at low temperatures, excellent adhesion and great dimensional stability for use as a VCL.

Product Make Up: Thermofusible film, SBS, 80g/m² polyester reinforcement, SBS, Sand Finish.

Resources

Drawings

Fatra Felt Standard Drawing Details

Download
Technical Datasheet

FF867 Insulation Adhesive

Download
Technical Datasheet

FF817 Substrate Primer

Download
